How to set up ZowieBox to connect with my equipments?

1. Login the Web Consol

ZowieBox provides five easy, quick ways to login into the Web console.​

(1) IP Address

The ZowieBox’s DHCP is turned on by default, so just find the IP address on the screen and type IP into the browser.

(2) Login ZowieBox by mDNS

Please enter http://ZowieBox-xxxxx.local in the browser of your computer or mobile phone. (mDNS URL is on the bottom of the ZowieBox.)

(3)  Login ZowieBox by Hotspot

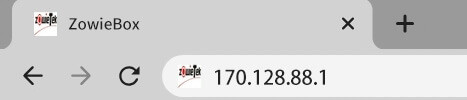

Direct connect to ZowieBox without a LAN or WIFI network. Connect the mobile device to ZowieBox’s hotspot, it is default on. Please find its SSID and password at the bottom of ZowieBox. After connecting to the hotspot, enter http:// 170.128.88.1 in the browser to log into the Web console. When connecting to the hotspot, the phone may prompt that there is no Internet, which is normal, please continue to connect.

(4)  Login ZowieBox by Device Discover

If you already own any ZowieBox or ZowiePTZ products, you can also log into a new device by Device Discover.
Log in to the Web console, click “Setting > Dashboard” to use the discover function. After clicking the “Scan” button, find the device serial number on the bottom label corresponding to the new ZowieBox and click it to quickly jump to the device’s Web console.

(5) Failsafe IP

When the connected network does not have the DHCP or directly connects ZowieBox to PC via LAN cable, or other unknown errors occur, the IP of ZowieBox will become a failsafe IP (192.168.5.168). Please add a 192.168.5.x address to the computer to log in to the Web console. Please refer to the user manual for detailed settings of the PC.

Notes:
Admin Login Username: admin; Password: admin

2. Control Device Switching

There are two ways, if the user needs to use a mobile phone to log in to the Web console after logging in the ZowieBox’s Web from a computer.

(1) Make sure the phone is on the same LAN as the ZowieBox, then scan the first QR code to log in to the mobile Web console.

(2) Click the hotspot icon and scan the QR code that appears to connect to the hotspot. And make sure the phone is on the same hotspot as the ZowieBox. Then, scan the first QR code to log in to the mobile Web console.
​
