Designed for modern meeting spaces, ZowiePTZ delivers crystal-clear video, smooth pan-tilt-zoom control, and effortless connectivity—making it the perfect choice for video conferencing, hybrid meetings, and remote collaboration. ZowiePTZ is capable of PoE, built-in tally light. Standard filter thread and advanced mobile devices control. ZowiePTZ would be a flexible and affordable solution to stream high-quality video over a network for system integrators, streaming professionals, and OEM partners.
The 12X model features an 80° wide-angle lens—perfect for covering everyone around the table in small to mid-sized meeting rooms and huddle spaces. The 18X model offers a narrower field of view with longer optical reach, ideal for larger rooms or focusing on distant speakers and presentation areas. Both models are well-suited for hybrid meetings and remote collaboration, delivering clear visuals in any setup.
Supports USB, HDMI, and LAN (IP streaming), working flawlessly with Teams, Zoom, Webex, OBS, and major live streaming platforms. Just plug and play—no extra software or drivers required.
ZowiePTZ is a mobile device friendly PTZ, you can control the camera via connecting its hotspot, and discover the around ZowiePTZ to control it. ZowiePTZ supports the ErgoEase Optical Remote, a comfortable, ergonomic handheld controller that offers intuitive pan, tilt, zoom, and preset operations—ideal for both seated users and operators in dynamic environments.
The ZowiePTZ 12X camera also adds a TOF (Time of Flight) module that accurately measures the distance between the camera and the target. This advanced feature improves focusing efficiency in bright and low-light shooting by emitting a beam of infrared light!
ZowiePTZ’s 58mm filter thread is designed for use with any density standard Neutral Density (ND)，UV，Graduated Neutral Density(GND) filter. ZowiePTZ also comes with a lens cap to protect the precious glass pristine.
ZowiePTZ has build-in Tally light, which can be intergrated to NDI, vMix or a switcher with a Tally system, instantly indicates the status of a live broadcast, and the Tally in the front of the camera ensures you on air talent will always know which camera is live.
ZowiePTZ supports streaming and recording simultaneously, the video can be recorded as files to TF card or an external, USB-connected storage device or NAS.
ZowiePTZ has RESTful API and program your own automation for all ZowieTek hardware endpoints, including cameras.
A New Definition for 4K Conference Cameras
Optimized for Meetings & Collaboration

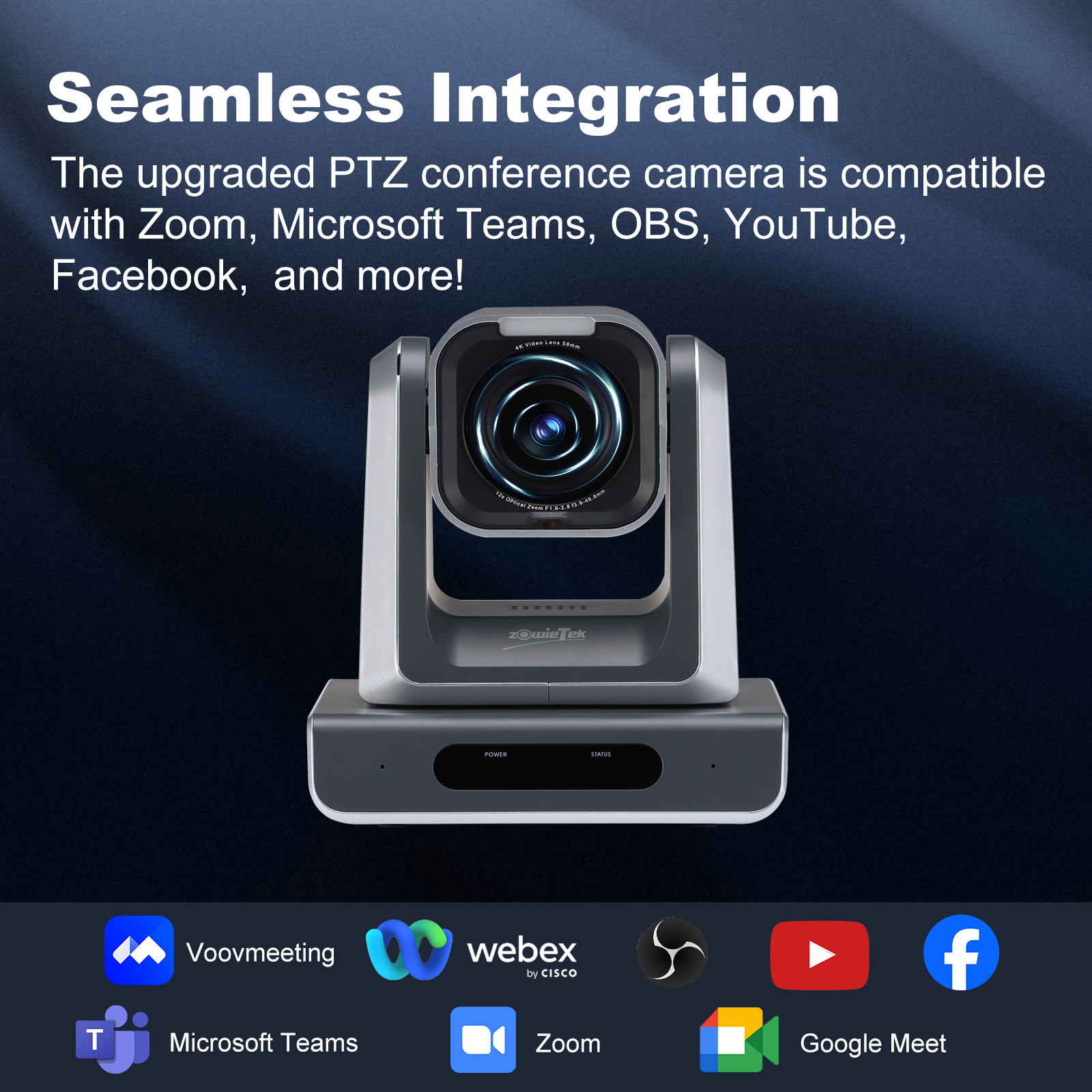

Seamless Integration with Video Platforms
Control From Your Pad or Phone
No more app download, just visit its ip address, there is a live monitor, a live joystick to move cameras around, and the ability to save and recall preset PTZ positions.TOF
58mm Strandard Filter Thread
Tally Light That Just Works
Flexible recording
Support RESTful API
4K PTZ Conference Camera
-
Sony 4K Ultra-HD Sensor: Equipped with a back-illuminated, stacked 1/2.3″ Sony sensor for exceptional clarity and performance.
-
Sharp & Low-Noise 4K Video: Delivers crisp detail and reduced noise, even in challenging lighting conditions.
-
High-Quality Optical Zoom: Available with 12x or 18x optical zoom lenses for versatile framing without image degradation.
-
Built-in Tally Light: Supports PVW/PGM indicators for smooth multi-camera live production workflows.
-
Dual 4K Output: Simultaneous 4K HDMI and USB outputs with embedded audio for flexible integration.
Power
| Input | 12VDC 1A max, 12W Max. POE (IEEE 802.3af)） |
| Consumption | ~8W Typical |
Camera
| Image Device | Sony 1/2.3” Back-illuminated and stacked Exmor R CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| Aperture/IRIS | F1.6-2.8, F1.67-3.67, F1.6-4.3 |
| Electronic Shutter | AUTO, 1/25(30), 1/50(60),1/90, 1/100,1/120,1/125,1/180,1/250,1/300,1/500 1/600,1/725,1/1000,1/2000,1/3000,1/4000 1/6000,1/10000 |
| Lens Zoom Ratio | 12x, 18x |
| Focal Length | f3.4-40.3mm, f5.5-99mm |
| FOV(D/H/V) | 12x, Wide:78.5°/70.8°/42.7°, Tele:7.4°/6.4°/3.6° 18x, Wide:63.1°/51.9°/39.7°, Tele:3.7°/3.0°/2.2° |
| Gamma Control | 9 options |
| Noise Reduction | 2D/3D, 8levels |
| White Balance | Auto, One Push, R/B Gain, Color Temp, Lock |
| Color Temp | 3000-6500K |
| Focus | Auto/Manual/One Push with AF Lock |
| Exposure | AE/AAE/SAE/M with AE lock |
| Focal Zone | 6 zones and Point Focus |
| Style | 7 options. |
| Mirror/Flip | Automatic/Manual |
| Control | English/Chinese IR OSD Menu |
| Flicker Cancel | Auto/50/60 |
| ND/UV/PL Mount | 58mm |
Video
| Video Encoder | H.264 HP/MP/BP, H.265 MP |
| Resolution | 4K2160p25/30, 1080p25/30/50/60 1080i50/60, 720p50/60 |
| Bit Rate | Max. 50Mbits/s, adjustable |
| Frame Rate | 24/25/30fps, 50/60fps for 1080/720p |
| Codec | H.264/H.265 |
| Rate Control | CBR/VBR |
| Live Preview | Web, HDMI and SDI |
| OSD | WYSIWYG editor |
Network
| LAN | 100/1000Mbps Gigabit |
| WIFI | 802.11a/b/g/n/ac, Dual Band |
| Bluetooth | V5.0 |
| WEB | http,https |
Streaming
| Streaming Out | RTMP/SRT*/RTP/UDP/RTSP,*SRT caller only |
| Bit Rate | Max. 50mbits/s, adjustable |
| Main Video Stream | Up to 4K30 |
| Secondary Video Stream | Up to 720P |
| Recorder | mp4, mov, ts |
| Storage | TF, USB and NAS |
| Rotation | 0/90/180/270°, native vertical streaming |
Pan/Tilt and Control
| Protocol | IP VISCA, VISCA, NDI®, Pelco P/D, WEB, OnVIF,RESTFUL API |
| Control | Phone, Pad, PC, Controller, Web, IR |
| OSD Menu | Support |
| PAN/Tilt | +/-173°, +90°/-53° Adaptive |
| P/T Speed | P: 0.05 to 60°/s, T: 0.05 to 50°/s |
| Preset Position | s255, 0 for home position |
| Preset speed | 10 levels |
Audio
| Sampling | 32、44.1、48KHz |
| Encoder | AAC, MP3, 16bit |
| Bitrate | 32-192kbps |
| Line Input | 0.7VRMS, 20K, 2CH, AGC |
| Microphone | Dual MIC omni-direction, 2.5V bias |
| Source | Line In, MIC |
| Audio Embedding | HDMI, SDI and NDI embedded |
Software
| Firmware | Upgradeable, Linux OS |
Interface
| Power | 1 x JEITA,DC IN |
| HDMI Output | 1 x TYPE A, Receptacle |
| RS485/422 | 1 x Phoenix Port 4, 3.81 pitch, Tx/Rx |
| VISCA | 2 x MDIN-8 Female, Tx/Rx |
| Audio In | 1 x 3.5mm Jack |
| Network | RJ45, Gigabit, PoE |
| IR | 1 x Remote Control |
| Tally | 1 x Auto/Manual, Top-Front |
| Visible | 2 x LED, bi-color Power and Status |
Physical
| Size | 161 x 183 x 186mm (6.34” x 7.2” x 7.32”) |
| Weight | 1.294kg (2lb 13.64 oz) |
| Operating | 0°C to 45°C(32°F to 113°F), Indoor |
| Storage | -20°C to 60°C(-4°F to 140°F) |
| Mount | 1/4”-20UNC tripod, Ceiling and Wall mount |
| Material | Plastic, Dark gray and Silver |
Certification
|
CE, FCC
|
EN IEC 61000-3-2, EN 61000-3-3
|
| Item | Type | Update | Version | download |
|---|---|---|---|---|
| Spec | 7/2/2024 | – |  |
|
| Quick Start | 5/14/2025 | – | |
|
| Firmware | ZIP | – | – | – |
| Product | P/N |
|---|---|
| 4K PTZ Conference Camera 12x | 30671-101 |
| 4K PTZ Conference Camera 18x | 30671-102 |
| Accessories | |
| Power Adapter x 1 | |
| Quick User Guide x 1 | |
| Ceiling and Wall Mount x 1 | |
| RS232 to MDIN-8 VISCA Cable x 1 | |
| USB Cable x 1 | |
| Phoenix Plug x 1 | |
|
IR Remoter x 1
|
|
|
ErgoEase (only support the hardware above 21) x 1
|
|
| *Accessories is optional and sold separately |
