4K60 NDI Video Streaming Encoder/Decoder

  • 4K60 Ultra-HD:  4K60 encoding/decoding for broadcast quality.
  • WiFi 6 & 2*2 MIMO: High-throughput WiFi 6 for stable wireless streaming.
  • NDI®|HX3: NDI®|HX3 for low-latency, high-fidelity video.
  • Edge AI Engine:  Localized Edge AI processing for instant response.
  • AI Auto-Tracking: AI-smart Face/Human tracking for any PTZ camera.
  • Audio-Only Mode:  Dedicated Audio-Only mode for ProAV applications.
  • Audio over SRT/NDI: 8-ch hi-fi audio bridge via SRT and NDI.
  • Multi-Protocol:  Concurrent multi-protocol streaming (NDI/SRT/RTMP).
  • Touch Screen Control: Integrated touch screen for live preview & one-touch control.

ZowieBox Pro: The World’s First AI-Driven 4K60 NDI Encoder & Decoder

As the next-generation evolution of the acclaimed ZowieBox, ZowieBox Pro redefines professional streaming with its revolutionary integration of 4K60 encoding/decoding, WiFi 6 technology, and Edge AI intelligence. It stands as the industry’s first AI-powered codec designed to transform any standard camera into an intelligent tracking system. By handling complex AI algorithms locally at the edge, ZowieBox Pro ensures ultra-low latency and total data privacy. Combined with NDI®|HX3 support, a dedicated ProAV Audio-Only mode, and a responsive touchscreen interface, it is not just an upgrade—it is a pioneering leap into the future of intelligent IP video production.

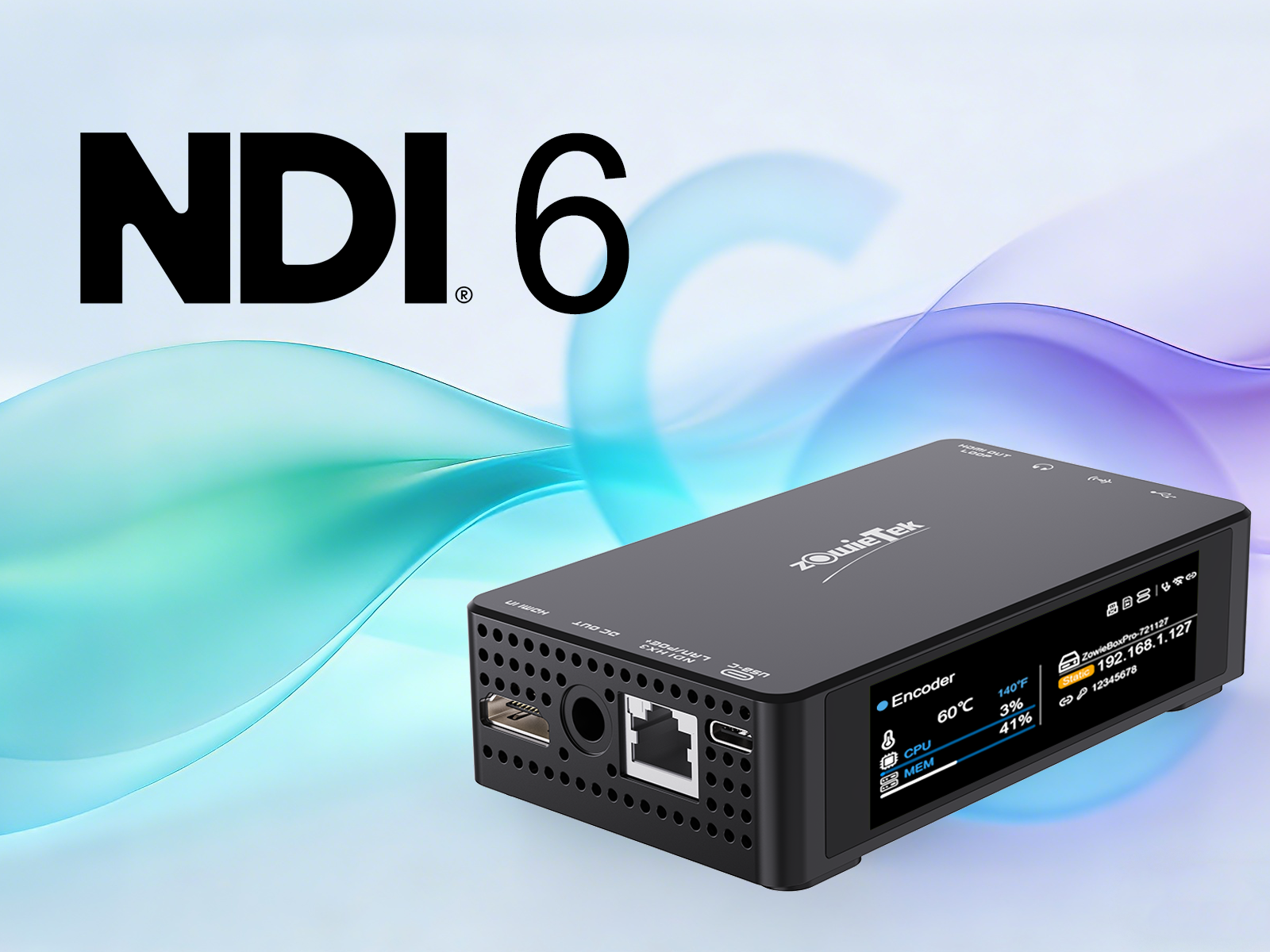

True 4K60 NDI 6 Ecosystem

Beyond just 4K60 resolution, it fully embraces NDI 6. With integrated NDI Bridge support, it allows seamless cross-network, long-distance transmission without complex setups. It bridges your local studio to the global cloud.

AI-Empowered PTZ Evolution

Transform Legacy PTZ with Edge AI Intelligence. Powered by ZowieBox Pro’s robust Edge Computing capabilities, all AI processing is handled locally on the device—no cloud or external servers required. By simply connecting your standard cameras, you can instantly unlock pro-grade Human/Face Tracking and Auto-Framing. Localized edge processing ensures ultra-low latency response and total data privacy, providing a cost-effective path to automated production without the need for expensive AI hardware upgrades.

Edge Virtual Production

High-performance hardware-level Real-time Chroma Keying. Built-in AI algorithms handle complex edge hair details and shadows, delivering clean green-screen removal directly within the encoding pipeline for instant virtual studio output.

Broadcast-Grade Audio Over IP

Professional IP Audio Excellence for ProAV. ZowieBox Pro features broadcast-grade 8-channel audio support and 7.1 surround sound recording. With the dedicated Audio-Only mode, it functions as a high-fidelity IP audio bridge over SRT and NDI protocols, independent of video streams. Designed for the demanding ProAV market, it provides the perfect solution for remote Intercom, IFB, or professional music streaming with ultra-low latency and pristine sound quality.

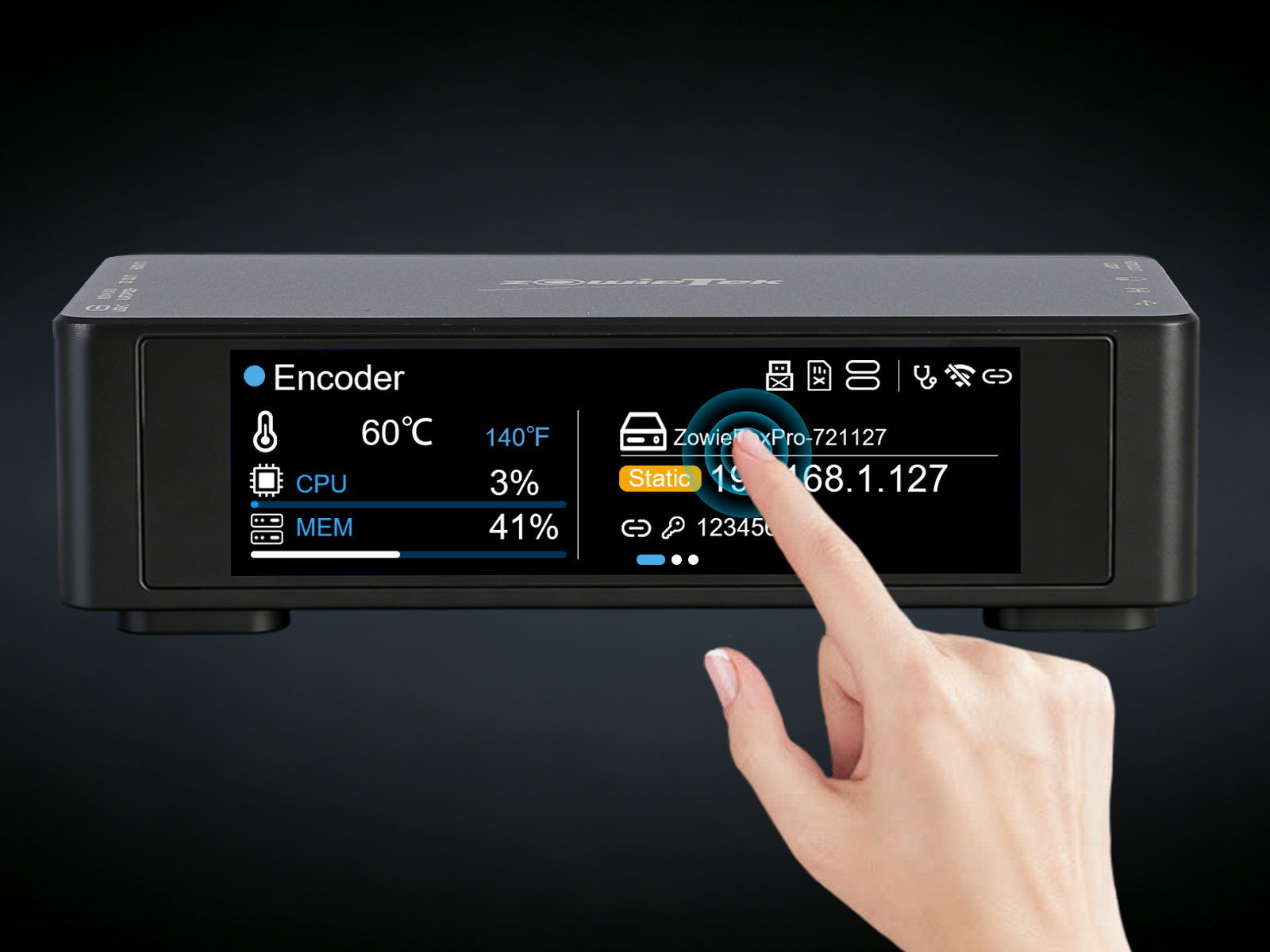

All-in-One Touch Control Hub

No laptop required for on-site deployment. The integrated LCD Touchscreen allows for full device configuration, network settings, and status monitoring. Adjust NDI parameters or switch modes with a single tap on the hardware.

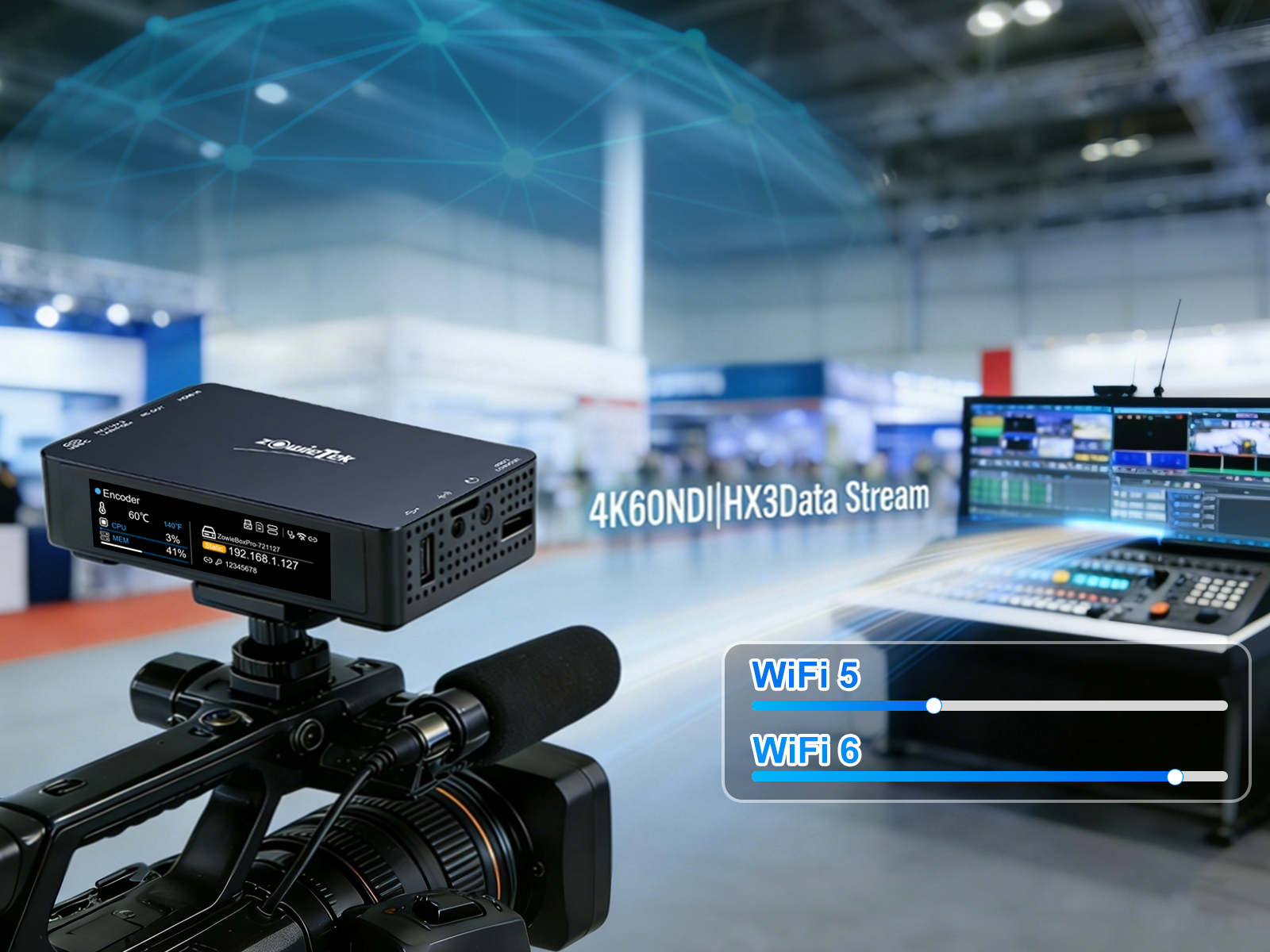

High-Throughput WiFi 6 & 2×2 MIMO

Unleash the full potential of 4K60 NDI|HX3 without the cables. Equipped with WiFi 6 technology and 2×2 MIMO dual-antenna architecture, ZowieBox Pro delivers massive data throughput and superior interference resistance. Whether in a crowded event or a spacious studio, experience stable, broadcast-quality wireless video with unprecedented smoothness.

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

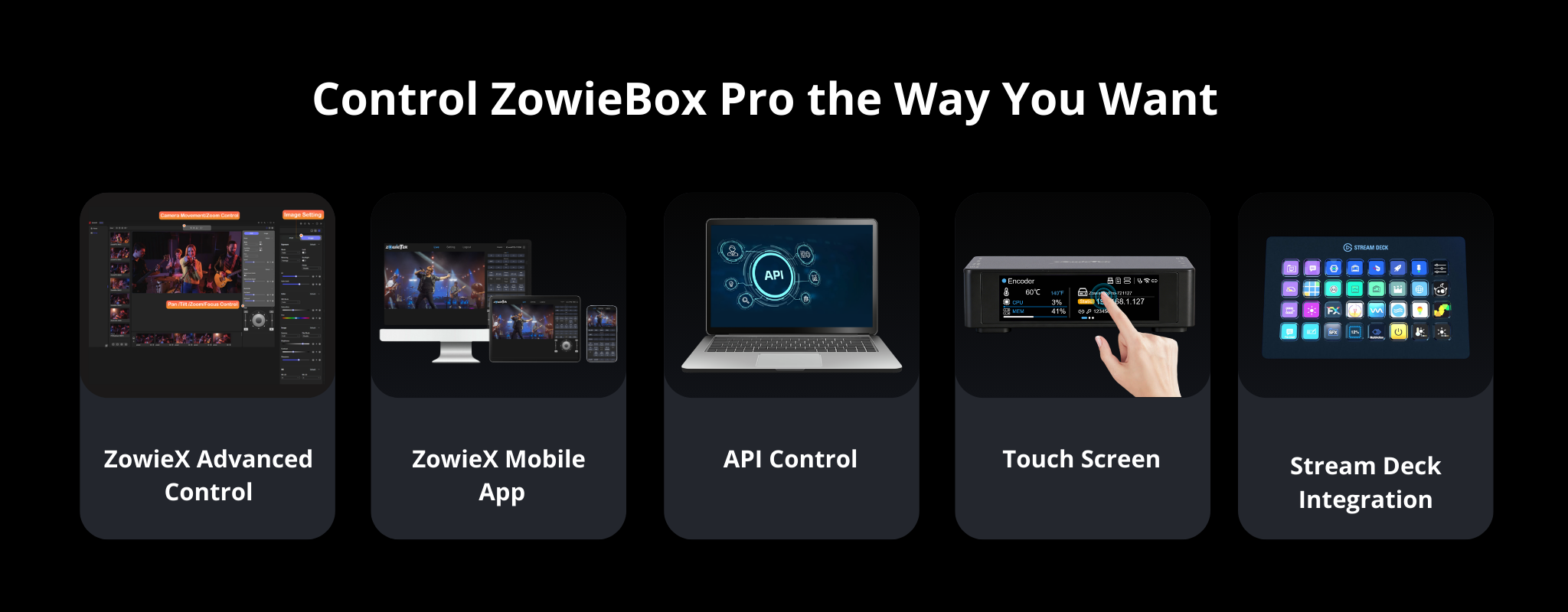

Multi-Platform Control Hub

EN: Total control at your fingertips. Manage devices via the dedicated App (iOS/Android), PC/Mac software, or the Web UI. For advanced integrators, a comprehensive API is provided for custom automation and system integration.

Power
Input  USB TYPE C, 25W aboveUp to 20V 1A, 25W up with DC Adapter,PoE+ (IEEE802.3at), CAT5e above
Consumption ~10W Max (Without DC Out)
Output  8.4/12V 1.5A DC Max with current limit
Video
Video Encoder  H.264 HP/MP/BP, H.265 MP/MT, JPEG BP
Resolution  4K2160p60/59.97/50/30/29.97/25/24/23.971080p23.97/24/25/29.97/30/29.97/50/59.94/60
Encoder/Decoder 720p50/59.94/60

For both video Input & Output

Loop through* Up to 4K60
Frame Rate 23.97/24/25/29.97/30fps, 50/59.94/60fps
Codec H.264/H.265/MJPEG
Rate Control  CBR/VBR/AVBR
Live Preview  Web, APP, HDMI loop through and output
Network
LAN 100/1000Mbps Gigabit
WIFI  802.11a/b/g/n/ac/ax, Dual Band
 Bluetooth V6.0
WEB http, https
Streaming
Encoder RTSP/RTMP(s)/SRT
Decoder RTMP(s)/SRT/RTP/UDP/RTSP/TCP/HTTP(s)
Bit Rate Max. 50mbits/s, adjustable
NDI® Encoder NDI® | HX3/HX2/HX
NDI® Decoder NDI® | HX3/HX2/HX
NDI Audio Direct Audio over NDI
Recorder mp4, mov, ts
Rotation 0/90/180/270n°, native vertical streaming
Main Video Stream Up to 4K60
Secondary Stream Up to 1080p for 4K60 input
Audio
Sampling 32, 44.1, 48,96 kHz
Encoder AAC, MP3, 16/24bit
Bitrate 32-192kbps
Channel Dual, AGC, up to 8 Channel
Input 0.7VRMS, 20Kohm
Output 16ohm, 30mW
Source HDMI Embedded, Line In and MIC
Input/Output
HDMI In  2.0b, RGB/YCbCr 444/422/420
HDMI Loop out 2.0, up to 4K60
HDMI Out  2.0, up to 4K60, 4:4:4(YCbCr)/RGB
NDI NDI® | HX3/HX2/HX (NDI 6.3 upgradeable)
UVC USB UVC IN/OUT
Configuration
Display  3.42” TFT Touch
Setting Smartphone/Tablet, PC, RESTFUL
OSD  Text, Logo Caption, Time Stamp, Scoreboard
API RESTFul ZowieAPI
UI ZowieUI, Touch Screen
APP Windows, iOS, Android
PTZ
Interface RS232/485/422 via USB dongle*
Protocol Pelco D/P, VISCA, ONVIF
Tally
Tally Mode Auto/Manual/Off
Software
Firmware Upgradeable, Linux OS

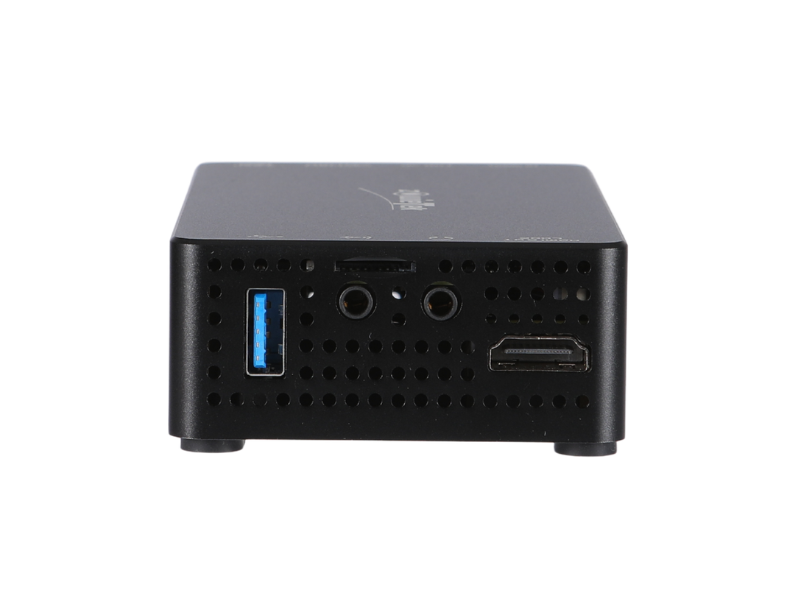

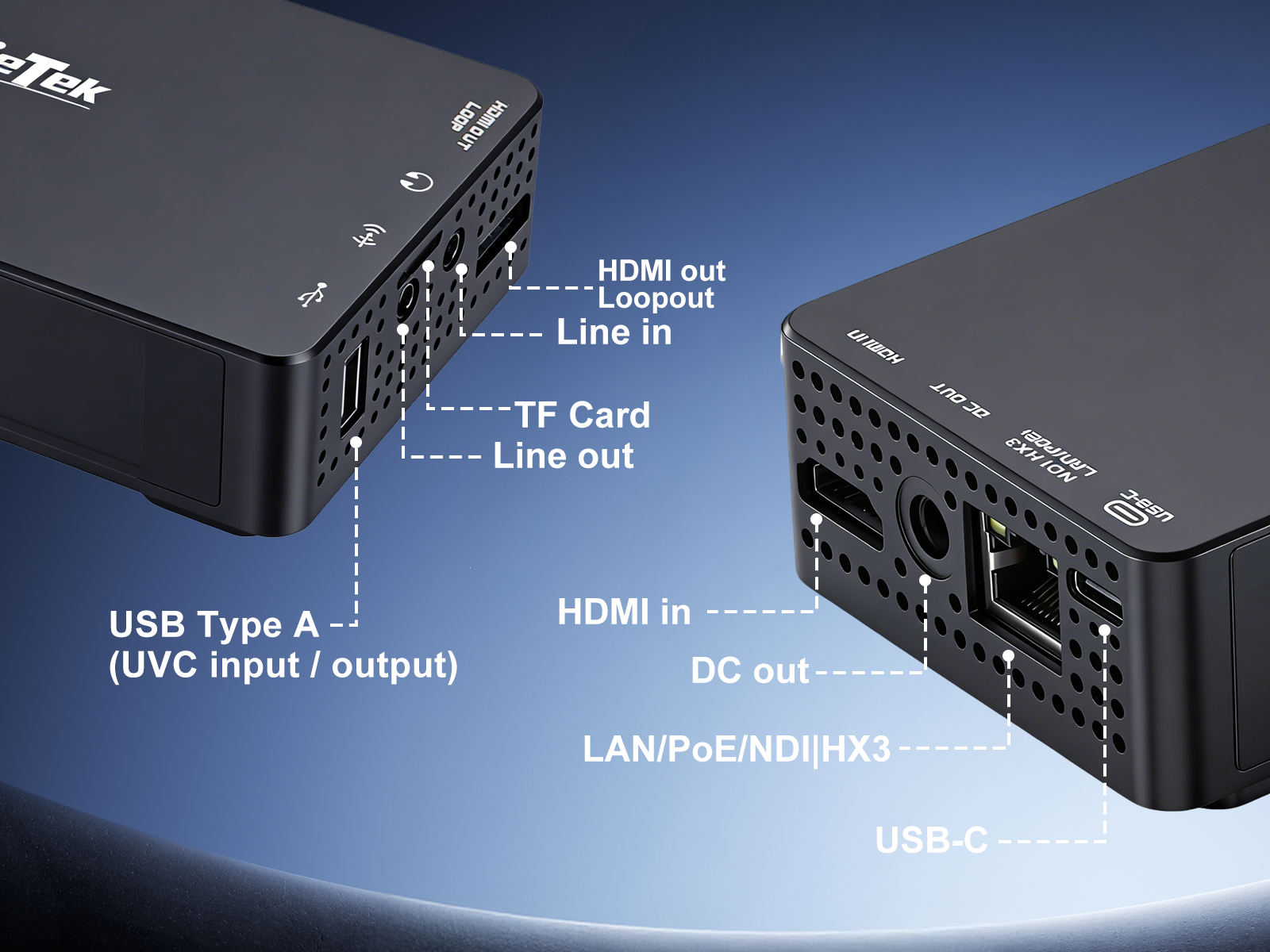

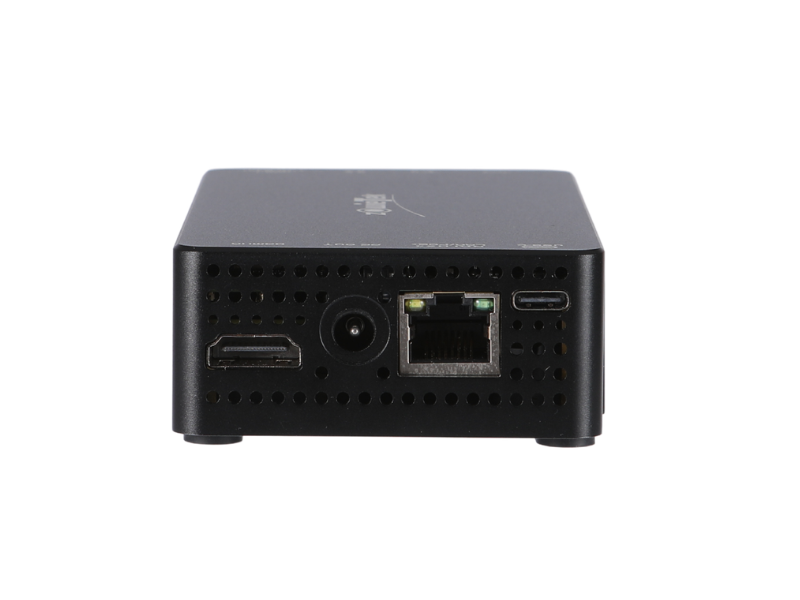

Interface
HDMI Input 1 x TYPE A, Receptacle, 2.0
HDMI Loop Out 1 x TYPE A, Receptacle(Mux), 2.0
HDMI Output 1 x TYPE A, Receptacle(Mux), 2.0
Audio In 1 x 3.5mm TRS Jack
Audio Out 1 x 3.5mm TRS Jack
Network 1 x RJ45, Gigabit, PoE
USB 1 x USB, TYPE A
Visible 1 x RGB LED Panel, 1 x LCD
Storage
Internal 1 x MicroSD/TF, USB
Network NAS
Disk Format FAT32 up to 2T, exFAT
*All storage media not included
Physical
Size 123 x 68 x 29.6mm(4.8” x 2.7” x 1.16”)
Weight 196g (6.9oz), Black aluminum
Operating 0°C to 45°C(32°F to 113°F)
Storage -20°C to 60°C(-4°F to 140°F)
Tripod 1/4” – 20UNC
Certification
CE,FCC
Item Type Update Version Download
Spec PDF 04/02/2026
Manual PDF
Quick Start PDF
Firmware ZIP



Product P/N
4K60 Video Streaming Encoder/Decoder
30721-100
4K60 NDI Video Streaming Encoder/Decoder
30721-110
Accessories
USB TYPE C PD Charger x 1
USB TYPE C Cable
Cold Shoe 1/4″
Quick Start Guide
*USB RS232/RS485/RS422 Dongle
*Accessories is optional and sold separately

NDI® is a registered trademark of NewTek, Inc.
