How to Mount ZowiePTZ on American-Style Triple-Truss?

You can use two 58mm or 90mm U-bolts for installation—choose the size based on the diameter of your truss.

First, secure the included ZowiePTZ bracket to the truss using the two U-bolts.

Then, attach the ZowiePTZ to the bracket.

The common American-Style Triple-Truss is shown in the image below.

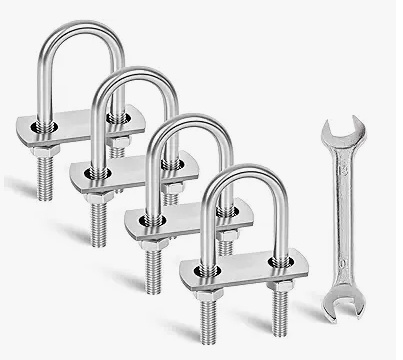

The U-bolt is shown in the image below.

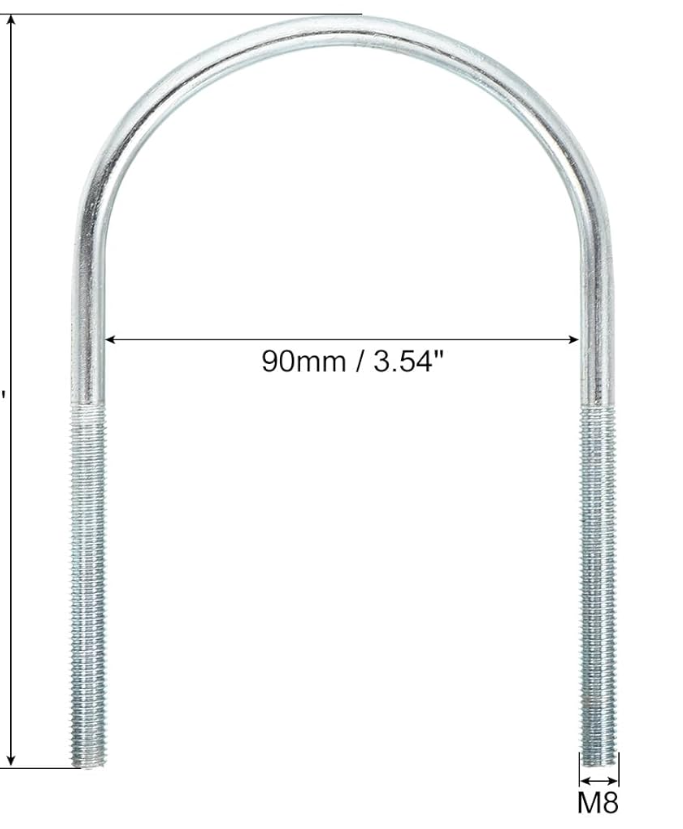

The 90mm/3.54” U-bolt is shown in the image below.

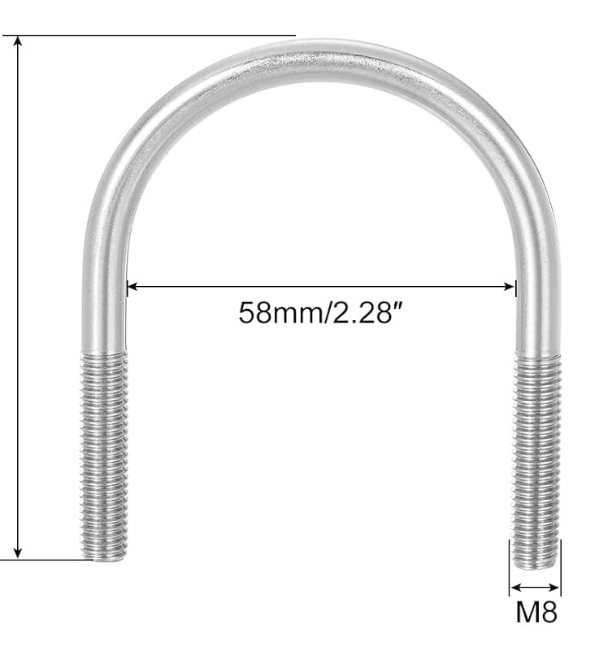

The 58mm/2.25” U-bolt is shown in the image below.

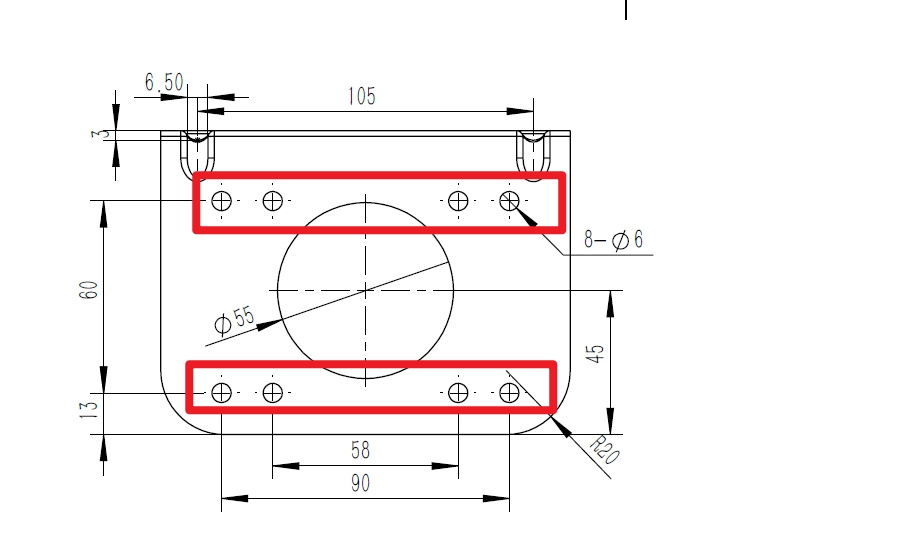

The ZowiePTZ bracket holes are shown in the image below.
