How are the buttons on the ZowieKBD organized?

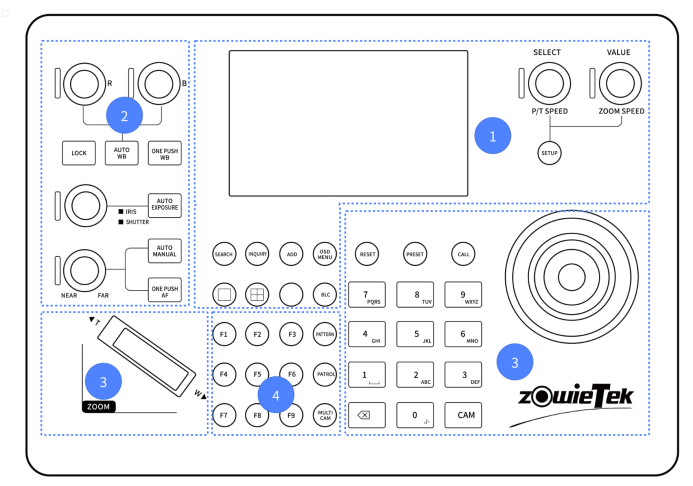

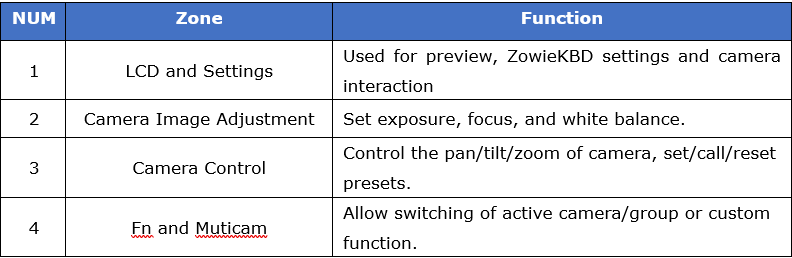

ZowieKBD at a Glance

  1. Lock
    Lock all ZowieKBD functions, the light is on when locked
  2. Auto White Balance
    Press to switch between Auto/Manual /Indoor /Outdoor /One-push/Manual white balance.
  3. One Push WB
    Trigger one-push white balance, automatically switch to one-push white balance mode when in other mode.
  4. Manual Red Adjustment for White Balance
    Automatically switch to manual white balance mode when in other white balance mode.
  5. Manual Blue Adjustment for White Balance
    Automatically switch to manual white balance mode when in other white balance mode.
  6. Auto Exposure
    Press to switch between auto/manual/shutter priority/aperture priority/brightness priority modes.

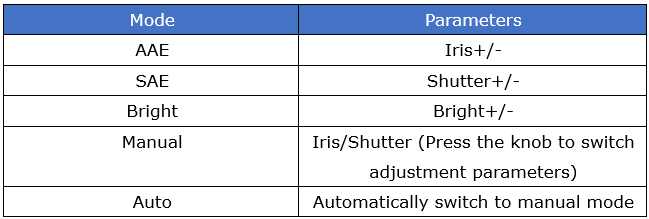

  7. Manual Adjustment for Exposure
    Adjust different exposure parameters according to different exposure modes.

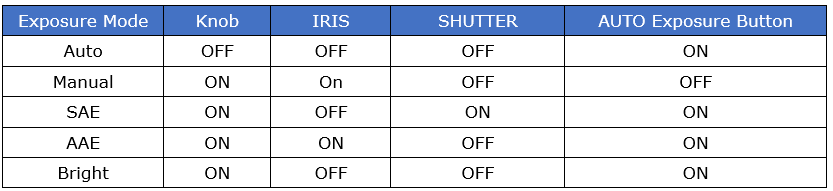

  1. Exposure mode indicator
    The current mode can be confirmed by the light of the button/knob
  1. Focus
    The current mode can be confirmed by the light of the button/knob
  2. Manual Adjustment for Focus
    Manually focus far/near, automatically switch to manual focus mode when in other mode.
  3. One Push AF
    Trigger one-push focus, automatically switch to one-push focus when in other mode
  4. Zoom Seesaw
    Zoom in/out
  5. LCD
    Video preview and settings
  6. P/T Speed
    Set the horizontal/vertical rotation speed
  7. Zoom Speed
    Set the zoom speed
  8. Setup
    Enter/exit the keyboard setting interface
  9. Joystick
    Any directions to control the camera direction
  10. Search
    Search for cameras on the same network segment through Sony VISCA/ONVIF/NDI protocols
  11. Inquiry
    View/edit/add cameras, add groups
  12. Add
    Through IP VISCA(UDP)/IP VISCA(TCP)/ONVIF/VISCA/Pelco D/Pelco P/NDI/Sony VISCA to add camera
  13. OSD Menu
    Call/exit camera’ s OSD menu
  14. Reset
    Reset presets
  15. Preset
    Set presets
  16. Call
    Call presets
  17. Single Grid Switch
    Switch single grid preview
  18. Four-Grid Switch
    Switch four-grid preview
  19. HDMI Switch
    Switch HDMI priority/LCD priority output
  20. BLC
    Turn on/off Backlight
  21. Pattern
    Reserve
  22. Patrol
    Reserve
  23. Multi Cam
    Number + MULTI CAM to switch group
  24. Numeric Keypad
    Numeric-alphabetic input
  25. Cam
    Number + Cam to switch camera
