How to Connect a Sony VISCA Camera to ZowieKBD？

Method 1: Search for Sony VISCA Camera (Recommended)

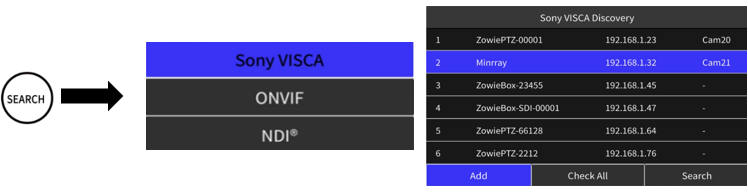

1. Click SEARCH and select Sony VISCA protocol to search or click ->Device Management->Search and select Sony VISCA protocol to search.

2. After the search is completed, use the up, down and top button of the joystick to select the camera you want to add. A ” √ ” sign will appear in front of the selected camera .
3. Use the left, right and top button of the joystick to operate Add/Check All/Search below.

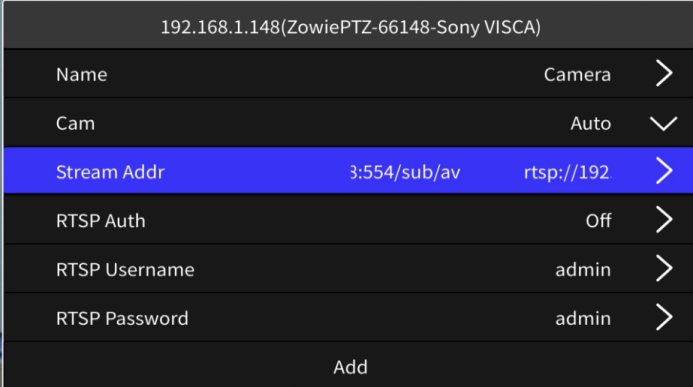

4. After clicking to add a single camera, please enter the correct RTSP address and RTSP authentication. (This step is not required when adding Sony VISCA cameras in batches)

Method 2: Manually add Sony VISCA camera

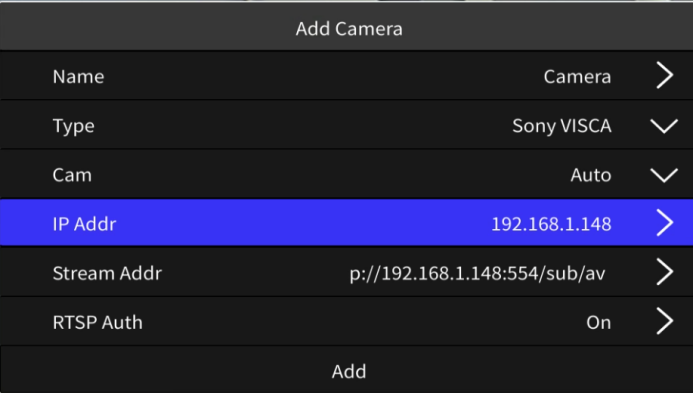

1. Click ADD to add manually, or click SETUP->Device Management->CAM List->Add to add manually.
2. Use the up, down and top buttons of the joystick to move the cursor and modify the parameters.

3. Change the Type to Sony VISCA, enter the IP address and RTSP URL of the camera to be controlled, and select the correct RTSP authentication.
4. The Cam number can be specified or automatically assigned in the order in which it is added.
5. Click Add to complete the addition.

Tips:

 Go to page 30 to see how to preset the RTSP suffix for quick addition
