How to Set Up a VISCA Over IP Camera on ZowieKBD？

1.Click ADD to add manually or click SETUP->Device Management->CAM List->Add to add manually.          2.Use the up, down and top button of the joystick to move the cursor and modify the parameters.

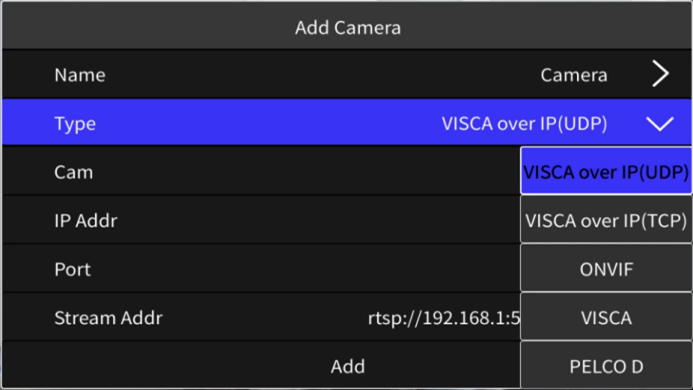

3.Select the type as VISCA over IP (UDP)/VISCA over IP (TCP), and the Cam number can be specified or automatically assigned in the order in which it is added.

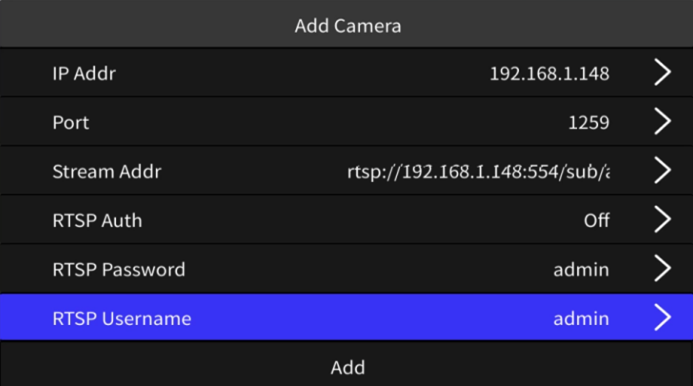

4.Enter the IP address and UDP/TCP port number of the camera to be controlled (ZowiePTZ default port TCP: 5230; UDP: 1259)                                                                                                                                              5.Enter the correct RTSP address and RTSP authentication for preview.
